Description

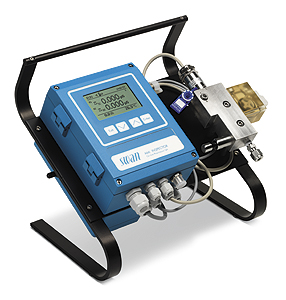

The portable AMI INSPECTOR is a complete on-line monitoring system mounted on a small panel with supporting stand and a rechargeable battery for stand-alone operation, designed as an inspection equipment for quality assurance of online, conductivity measurements in pharmaceutical applications.



• Conductivity measurement range: 0.055 to 1'000 µS/cm
• Rechargeable battery for stand-alone operation for at least 24 hours.

Specifications

Complete portable system mounted on small aluminium panel with supporting stand and rechargeable battery.

• Transmitter in aluminum housing (IP 66) with 2 relays as limit switch or controller or timer, 1 alarm relay as summary alarm contact, 1 input for potential-free contact. Including USB Interface with 1 signal output for measuring value or for continuous control.
• Flow cell QV-Flow UP-Con1000-SL made of stainless steel with flow adjustement valve and digital sample flow meter.
• Swansensor UP-Con1000-SL, two-electrode conductivity sensor with slot-lock design and in-tegrated Pt1000 temperature probe.
• Rechargeable battery for stand-alone operation of at least 24 hours.



Measuring range:	0.055 to 1'000 µS/cm
Accuracy:	± 1% of measured value
Power supply:	85 - 265 VAC; 50/60Hz
Stand-alone operating time:	> 24 hours
Sample flow rate:	5 to 20 l/h
Sample temperature:	up to 95°C
Process connection Inlet:	Swagelok ¼" tube adapter
Process connection Outlet:	flexible tube 8 x 6 mm
Total weight:	4.5 kg

For further information see data sheet.
