Description

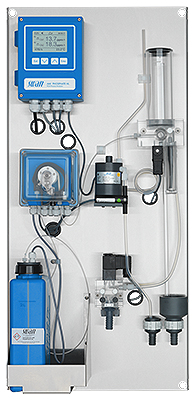

Colorimetric process analyzer for the automatic, continuous measurement of phosphate.

• Measuring range: 0.1 to 50 ppm (mg/L) PO4
• Based on colorimetric measurement principle.
• Complete system including measurement and control electronics, photometer, flow indicator, reaction chamber, reagent dosing system and reagent containers.
• No interferences with silica
• Control of sample flow and reagent fill level.
• Factory tested and calibrated. Provides immediate results.



Optional accessory:

• Dual channel option for 2nd sample stream or AMI Sample sequencer for up to 6 sample streams
• Cleaning module-II
• Communication interface (RS-232, Profibus, Modbus, 3rd Signal Output, USB)

Specifications



Phosphate (PO4)  Measurement
Measuring range: - Standard operating mode - Extended operating mode	- 0.1 to 25 ppm - 0.1 to 50 ppm
Reproducibility	± 0.01 ppm or ± 2.5% whichever is greater
Measurement time	2.5 minutes
Cycle time	5 minutes up to 30 minutes
Power Supply
Voltage	100-240 VAC , 50/60 Hz or 24 VDC
Sample conditions
Flow rate	approx. 10 l/h
Temperature	up to 50° C
Inlet pressure	0.15 to 2 bar
Outlet pressure	pressure free
Dimensions
Panel	400 x 850 x 200 mm

For further information see datasheet.
