Description

Monitor for continuous acid (cation) conductivity measurement.

• Complete system with dedicated transmitter, high precision conductivity sensor and flow cell with integrated cation column and automatic deaeration, needle valve and digital sample flow meter.
• Nuclear grade cation resin has been rinsed down for immediate use.
• Factory tested on wet bench. Ready for installation and start-up.

Specifications

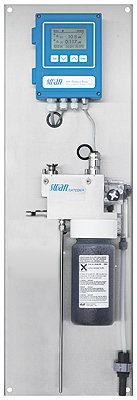

Transmitter AMI Powercon with conductivity sensor UP-Con1000-SL and flow cell Catcon-Plus-SL mounted on a stainless steel panel, ready for installation and operation.

Transmitter with two signal outputs for measured values or continuous control, two relays as limit switches or as controllers, alarm relay as summary alarm indication, input for potential free contact.

The flow cell is equipped with a manual flow adjustment valve, a digital sample flow meter and an integrated cation exchanger vessel with automatic deaeration.

• Measuring range: 0.055 to 1000 μS/cm
• Sample conditions:
  - Temperature: up to 50 °C
  - Inlet pressure: up to 2 bar
  - Outlet pressure: pressure-free (atmospheric drain)
• Sample connections:
  - Inlet: Swagelok ¼” tube adapter
  - Outlet: G ½” adapter for flexible tube 20 x 15 mm

For further information see data sheet
